Cadder Clamp – 250Kgs
Cadder Clamp – 250Kgs

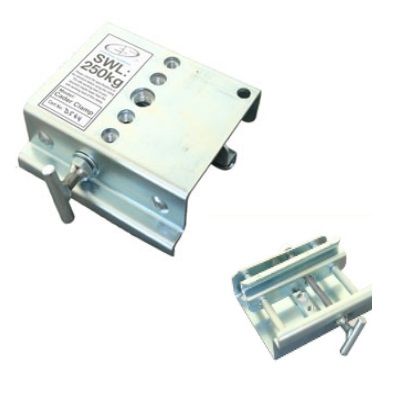

Cader Clamp or Kader Clamp 250kg.
Designed for hanging loads from marquee kader beams, normally used to suspend lighting rigs, floral displays and props.
Will fit all Marquee aluminium beams with kaders, that we have seen.
Can be used with M10 or M12 eyebolt with each clamp to hang rigging from.
Technical Details:
Min Kader slot opening 3mm
Max width of Kader beam 124mm
Overall Dimensions 150mm x 150mm x 55mm (w x d x h)
Fixing Thread 1 x M16, 2 x M10 & 2 x M12
12mm Hole for safety wire.
Manufactured from steel with BZP finish.
Designed Working Load of the Kader Clamp is 250kg,clamps are stamped and certified 250kg SWL.
Please check the SWL of your tent or marquee frame, as many structures have a lower SWL.
Call us now to discuss your requirements.
